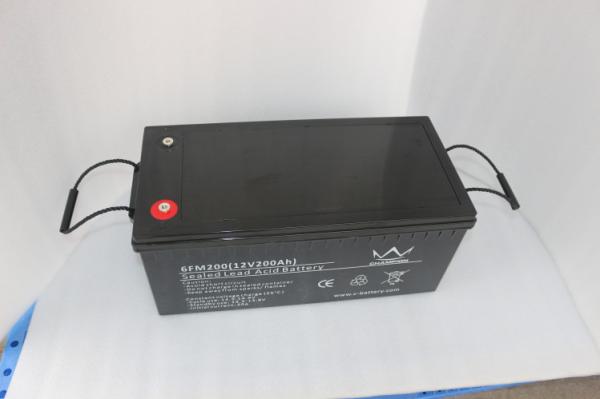

High Capacity Gel Lead Acid Battery For Motorcycle / Computer Networks
Gel Lead Acid Battery Description:
1. Excellent safety performance: No electrolyte leakage, battery swelling and cracking under normal use;
2. High resistance to high current: The fully charged battery is proved to be without conductive part melted or any appearance deformation after discharging at 2 CA for 5 minutes or 10 CA for 5 seconds;
3. High resistance to overcharge: The fully charged battery is proved to maintian normal open circuit voltage and be without leakage or batteries swelling or cracking in temperature of 25 degrees Celsius after chargeing at 0.1 CA for 48 hours, and the capacity maintian over 95%.
4. High resistance to overdischarge: In temperature of 25 degrees Celsius, the fully charged battery discharges with fixed resistance which is equivalent to the one required by 1 CA discharge of the battery for three weeks, and it can restore capacity over 75%;
5. High impact-proof performance: The fully charged battery is proved to maintian normal open circuit voltage and be without leakage or batteries swelling or cracking after droping three times from 20cm height naturally to a 1 cm-thick hardwood board;
Gel Lead Acid Battery Applications:
Telecom company
Uninterruptible power supplies
Computer networks and the Internet
Gel Lead Acid Battery Specifications:
| Model | Voltage | Capacity | Dimension(mm) | Terminal | Weight |
| (V) | (Ah) | L | W | H | TH | Type | (Kg±2%) |
| 3FM200G | 6 | 200 | 321 | 176 | 226 | 229 | M8 | 29.5 |
| 3FM300G | 6 | 300 | 295 | 178 | 345 | 348 | M8 | 47 |
| 4FM180G | 8 | 180 | 260 | 182 | 295 | 298 | M8 | 36.5 |
| 6FM33G | 12 | 33 | 195 | 130 | 155 | 166 | M6 | 10 |
| 6FM40G | 12 | 40 | 197 | 165 | 170 | 170 | M6 | 12.5 |
| 6FM42G | 12 | 40 | 197 | 165 | 170 | 170 | M6 | 13.5 |
| 6FM50G | 12 | 50 | 229 | 138 | 211 | 214 | M6 | 15.5 |
| 6FM55G | 12 | 50 | 229 | 138 | 205 | 210 | M6 | 16.5 |
| 6FM70G | 12 | 70 | 260 | 168 | 211 | 214 | M6 | 21.5 |
| 6FM75G | 12 | 70 | 260 | 168 | 211 | 214 | M6 | 22.5 |
| 6FM120G | 12 | 120 | 406 | 173 | 208 | 238 | M8 | 34 |
| 6FM134G | 12 | 120 | 340 | 172 | 282 | 284 | M8 | 42 |
| 6FM140G | 12 | 120 | 340 | 172 | 282 | 284 | M8 | 42.5 |
| 6FM150G | 12 | 150 | 485 | 172 | 240 | 240 | M8 | 43 |
| 6FM160G | 12 | 160 | 530 | 207 | 210 | 213 | M8 | 47.5 |
| 6FM180G | 12 | 180 | M8 | 52.5 |
| 6FM200G | 12 | 200 | 522 | 238 | 218 | 221 | M8 | 60 |
| 6FM250G | 12 | 250 | 521 | 269 | 220 | 223 | M8 | 71 |
| GFM100G | 2 | 100 | 171 | 72 | 205 | 210 | M8 | 5.6 |
| GFM150G | 2 | 150 | 171 | 102 | 206 | 221 | M8 | 8 |
| GFM200G | 2 | 200 | 171 | 111 | 330 | 364 | M8 | 12.8 |
| GFM300G | 2 | 300 | 171 | 151 | 330 | 364 | M8 | 18 |
| GFM400G | 2 | 400 | 210 | 175 | 330 | 367 | M8 | 25 |
| GFM500G | 2 | 500 | 241 | 175 | 330 | 365 | M8 | 30 |
| GFM600G | 2 | 600 | 302 | 175 | 330 | 367 | M8 | 36 |
| GFM800G | 2 | 800 | 410 | 175 | 330 | 367 | M8 | 50 |
| GFM1000G | 2 | 1000 | 475 | 175 | 330 | 367 | M8 | 60 |
| GFM1500G | 2 | 1500 | 400 | 350 | 345 | 382 | M8 | 93 |
| GFM2000G | 2 | 2000 | 490 | 350 | 345 | 382 | M8 | 120 |
| GFM3000G | 2 | 3000 | 710 | 350 | 345 | 382 | M8 | 180 |
Competitive Advantage:
Capable of high discharge rates
Special grid and design technology
Manufacture with more than 15 years history
Special container size for more convenient installation
Best performance with low cost
Low self-discharge
Gel Lead Acid Battery Packing
